Events Sparus II

SPARUS II AUVs in SPANISH MINEX

From the 5th to the 16 of May 2025 the Spanish Navy hosted the multinational exercise SPANISH MINEX-25 that took place in the Balearic Islands waters.





SPANISH MINEX is an annual exercise that takes place in Palma (Spain) with the aim of testing systems in a collaborative environment for Mine Countermeasures (MCM). Organized by the Armada, the exercise included this year the participation of Belgium, USA, France and Italy, amongst others. This year we had the chance to actively participate in SPANISH MINEX alongside our clients, the Spanish Navy (Armada) and the University of the Balearic Islands (UIB).

Figure 1. SPARUS II AUV ORAT surfacing after its mission in front of Porto Pi area (Mallorca).





The Armada was operating the two SPARUS II AUV units that they acquired back in 2023 for MCM applications. Besides autonomous underwater vehicles, the Spanish Navy tested underwater detection systems on board of its vessels together with divers specialized in mine neutralization.

Figure 2. Part of the AUVs that participated in SPANISH MINEX-25.



SPARUS II AUV ORAT is one of the most recent units that we have manufactured, it is the second unit of UIB fleet and it was conceived to be a multimodal mapping platform. With an improved navigation system incorporating an Exail INS, ORAT’s payload is composed by a multibeam echosounder from Norbit, a side scan sonar from Atlas Marine Sonic and a stereo camera system with lights developed by the IQUA team and especially designed for this particular payload configuration. Our team operated the vehicle together with the team of engineers at the UIB with the aim of testing the unit in a realistic scenario for MCM.

Figure 3. SPARUS II AUV ORAT configuration.



The results obtained prove the capability of the vehicles for gathering accurate data in an efficient manner, allowing the team to produce multiple complementary maps of the seafloor, automatising part of the mine detection process.

Figure 4. Shipwreck area mapped using multi beam and side scan sonar.

Figure 5. Sewage pipe area mapped using side scan sonar, multi beam and stereo camera system.



Sources:
Spanish Navy

Categories
Products Sparus II

Multimodal Mapping for Exploration and Inspection with the SPARUS II AUV

Micro and small-sized AUVs can integrate a wide range of sensors and navigation systems, making them ideal for applications in littoral waters due to their ease of deployment and operation. However, effectively exploring, locating, and mapping survey targets often requires combining multiple sensing techniques. Additionally, close-range, high-resolution inspection—traditionally performed by a secondary vehicle like an ROV—is highly desirable.

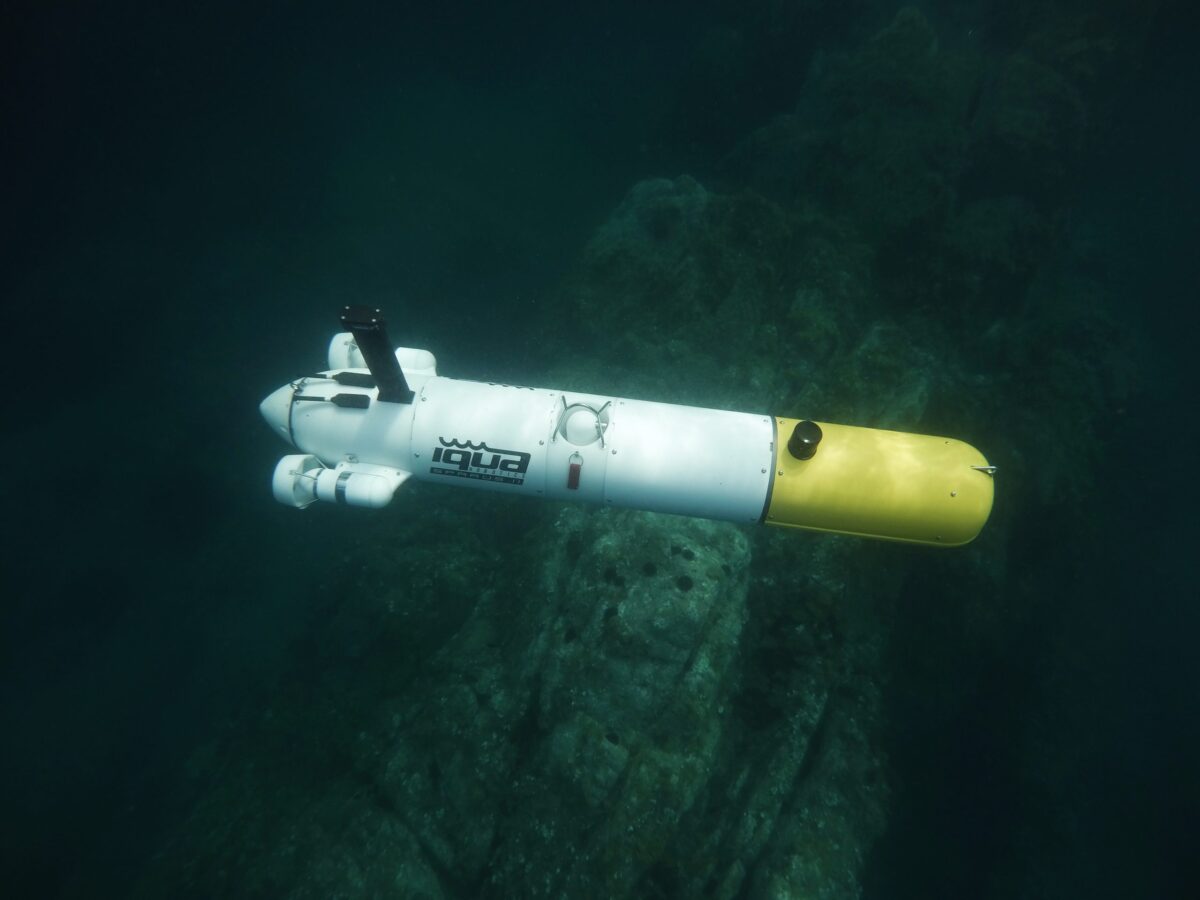

Figure 1: SPARUS II hovering AUV mapping a rocky area during a survey mission.

The difficulties of conducting and repeating sea campaigns, coupled with technological advancements, have driven the development of AUVs with multimodal perception payloads and hovering capabilities, enabling simultaneous exploration, surveying, and inspection. The SPARUS II AUV from IQUA Robotics embodies these characteristics and can be equipped with a comprehensive and complementary suite of sensors, including acoustic (sidescan sonar, multibeam echosounder, or forward-looking sonar), optical, and magnetic sensors, as well as precise navigation systems and sensors for measuring water parameters.

Figure 2: Payload for multimodal mapping: Teledyne RDI Pathfinder 600 DVL, Exail Phins C3 INS, Norbit WBMS MBES, Atlas Marine Sonic MKII 900 kHz sidescan sonar, and IQUA Robotics stereo camera system.

Thanks to its ease of deployment and recovery, simple operation, and streamlined processing pipelines, SPARUS II can perform consecutive missions from a support vessel, enabling a rapid cycle of data collection, analysis, and planning for successive missions based on previous findings. Sensors with broader coverage, such as sidescan sonar (SSS) or multibeam echosounder (MBES), are used to explore and locate areas of interest. The ability to acquire data from complementary sensors during the same mission —such as comparing the sonar intensity map from the sidescan sonar with the point cloud generated by the MBES— enables a more accurate interpretation of the scene. Higher-resolution sensors, such as forward-looking sonar (FLS) or optical cameras, provide detailed mapping of the scene. Additionally, the possibility to set-up a scanning trajectory that acquires data in all directions with precise control, allows to capture the necessary information for a later reconstruction of the inspected area.

Figure 3: Sewage pipe located with sidescan sonar (left), mapped at low altitude with MBES (middle), and stereo camera (right) during the same experimental deployment.

The SPARUS II AUV is designed to accommodate the latest sensor and navigation technologies. Its robust structure and sufficient power/autonomy enable it to operate in challenging maritime conditions for a full workday. This small-class AUV can reach a maximum depth of 200 meters and can be easily operated from a variety of vessels by a team of two people.

Figure 4: Top: Mapping of the same Posidonia meadow with sidescan sonar (left) and MBES (right), where the complementary acoustic image and bathymetry provide a better understanding of the area. Bottom: Rocky area mapped with SoundTiles FLS post-processing software (left) and optical camera (right).

Available software tools simplify mission planning, monitoring, and rapid data processing, allowing users to quickly analyze the AUV’s findings while it remains on the surface, ready for the next mission. Alternatively, real-time data processing can be performed onboard, directly linking environment exploration with inspection tasks when a target is automatically detected. Artificial intelligence plays a vital role here in scene recognition and decision-making.

Figure 5: Autonomous and real-time target detection and reacquisition with SPARUS II. Forward-looking sonar images (from Blueprint Subsea Oculus M1200) are processed at low frequency to detect the target, in this case, a fishing cage (top-left). After positive detection, the AUV adjusts its predefined trajectory to approach the target, reacquiring it acoustically at high frequency (top-right) and optically (bottom-left) in a multiple crossing trajectory. This enables full coverage and a 3D reconstruction in post-processing (bottom-right). Once the target has been inspected, SPARUS II resumes its trajectory to continue the survey, discovering and inspecting new targets.

Categories
Products Sparus II

SPARUS II AUV Turbot: 10 years in operation at sea

In this article we want to summarize the last 10 years of history at the Systems, Robotics and Vision research lab (SRV) at the University of the Balearic Islands (UIB), always linked to their SPARUS II AUV platform named Turbot. We’ve interviewed former members of the team as well as the current generation of researchers at SRV to understand what was the impact of acquiring an AUV platform for testing technologies in their everyday research and to understand their future goals.

Back in 2014, the team at the SRV was working on its research projects on underwater vision and robotics using a tailor made remotely operated vehicle, the Fugu ROV. It was a small ROV with a small lithium battery, a pressure sensor and a couple of stereo cams pointing to the front and below, in the times when small ROV affordable platforms were not a reality yet. With four small thrusters, they were able to move the vehicle up and down and gather datasets that, unfortunately, were not always ideal to work with.

The Fugu ROV helped the team to develop new technologies, starting with a ROS based architecture and visual odometry algorithms. In parallel, a vision payload was developed for the Fugu, the Fugu-flex, that was then integrated into Nessie AUV (from Heriot Watt University) and Girona 500 AUV (from University of Girona) in the framework of the EU funded project TRIDENT.

Image 1. UIB-SRV team presenting Fugu ROV at Palma Aquarium (2012). © University of the Balearic Islands.

Fugu ROV was soon too limited for a growing team of researchers that was eager to evolve in its work. M. Massot, former researcher of the SRV, remembers that times “we needed to look for a bigger autonomous vehicle, with DVL, that could handle our camera systems and with a ROS based architecture; the idea was to be able to keep the same research lines that we were working in and not having to reinvent the developed technology so far. Gabriel Oliver (the head of the research lab) introduced the idea of the SPARUS II AUV platform and, fortunately, he managed to find the funding to acquire it!”.

Image 2. SPARUS II AUV Turbot in its first missions (2016). © University of the Balearic Islands

The arrival of the SPARUS II AUV Turbot (named after the flatfish in Catalan language) changed the lab’s everyday dynamics; having a testing AUV that allowed gathering longer datasets and the technical support of the manufacturing team, helped the SRV to focus on their research. “Buying an operative platform and not having to be worried about waypoint following, navigation, reliable control, having USBL communication solved,… helped us to focus and advance faster in the technologies we were working on”, Massot remembers.

The first vehicle that the UIB acquired was a platform equipped with a DVL from Teledyne Marine and an acoustic modem with USBL from Evologics. On top of that, it was the SRV team who built up multiple payloads using different camera systems and also used the platform as a basis to evolve in their vehicle’s ROS based achitecture. In the years of Turbot at the lab, 4 PhD theses have been defended and more than 70 articles have been published in relation to the technologies that have been tested in the SPARUS II AUV.

“I started working at SRV when they had recently purchased the Turbot. I actually joined the lab because they had an AUV where I could work hands-on and I felt that being part of that team would help me to grow professionally. Research work made us do it all together as a complementary team, the flexibility of the platform and the possibility to further build up on the work carried out, was a continuous stimulation towards testing new things. The AUV made sense and, for the first time, we could generate useful data for third parties” points out E. Guerrero, former SRV member.

Image 3. SRV team operating SPARUS II AUV Turbot from the harbor (2018). © University of the Balearic Islands

F. Bonin, associate professor at the UIB, explains: “Currently, in the framework of collaborative research projects, the team is working in two main research lines: industrial applications and biological applications. In the first one, we are using the AUV for intervention in underwater infrastructure whereas in the second one we are using the AUV to gather data from the seafloor with the aim of post-processing it online and offline to extract information of the interest for the biologists. We aim to follow these research lines and keep collaborating with multiple institutions, since we see that this is the best way to grow in areas that we can contribute widely.” To that end, the SRV team has decided to purchase a new SPARUS II AUV unit, equipped with multiple sensors, in order to amplify the kind of work carried out with different kinds of data.

Recently, the UIB team decided to buy a new SPARUS II AUV unit for various reasons, she will be called ORAT (sea bream in Mallorca Catalan dialect). “We’ve been working with the SPARUS II Turbot and the experience has been very satisfying; it’s a vehicle that covers our needs both in research and in some applications for data gathering for the scientific community. The model covered our technical needs and IQUA robotics was the best candidate we had. ORAT will complement TURBOT. The first one will be devoted exclusively to data gathering to work on our post processing capabilities and also for working in cooperation with other vehicles. The latter one will be used for research that imply physical modifications of the AUV ” says Gabriel Oliver, Professor at the UIB and research lead at the SRV lab.

The new SPARUS II AUV ORAT, the first unit of a new upgraded generation of SPARUS, will have an enhanced navigation system integrating the Phins C3 Exail INS and a fully capable all-in-one payload that will contain a Norbit multibeam echosounder, a Marine Sonic side scan sonar and an IQUA Robotics developed camera system. “The incorporation of such technologies shall significantly increase the capabilities of the lab for participating in new projects. We will have more robust navigation and more precise sensors, giving to the vehicle more versatility and feasibility when gathering seafloor data” confirms G. Oliver.

Alongside with the new AUV, the UIB has acquired an autonomous surface vehicle of the brand Maritime Robotics that will provide further capabilities to the facilities at the UIB.

A few months ago, the current SRV team gathered in Palma de Mallorca (Spain) at the Martech workshop where they symbolically celebrated the 10 years of their youngest lab member who brought them a change of paradigm when most needed back in 2014 and who has opened doors that they would not had imagined when they started their research activity. Happy birthday Turbot!

Image 4. Current members of the SRV group at Martech 2024. © IQUA robotics

You can follow the activity of the group, TURBOT and ORAT at http://srv.uib.es

This article has been possible thanks to the collaboration of:

Gabriel Oliver

Full professor at University of the Balearic Islands

Francesc Bonin

Associate professor at University of the Balearic Islands

PhD – “An Inverse-Perspective-based Approach to Monocular Mobile Robot Navigation”

Èric Guerrero

AI researcher at Ocean Infinity

Part-time professor at the University of the Balearic Islands

Former PhD student at the University of the Balearic Islands

PhD – “Data-Driven Exploration of Benthic Environments with Autonomous Underwater Vehicles featuring Semantic Perception and Adaptive Navigation Intelligence”

Miquel Massot

Control Systems Engineer at Ocean Infinity

Former PhD student at the University of the Balearic Islands

PhD – “New insights on laser-based structured light for underwater 3D reconstruction”

Pep Lluís Negre

Software engineer at ROVCO

Former PhD student at the University of the Balearic Islands

Categories
Announcements Projects SoundTiles Sparus II

#PLOMEproject: testing innovative technologies for the management of marine ecosystems

The PLOME project has tested new technologies that will allow the deployment of stations and vehicles to monitor the marine environment and provide real-time data. The experiments have been conducted along the Catalan coast at depths of up to 350 meters. The project is led by the University of Girona, with participation from the UPC, the UIB, the UPM, the ICM-CSIC, and the company Iqua Robotics.

An oceanographic campaign has validated this past December a set of innovative technologies developed within the framework of a research project coordinated by the University of Girona (UdG) with the aim of improving the supervision, monitoring, and management of marine ecosystems. The campaign took place aboard the oceanographic vessel Sarmiento de Gamboa, of the CSIC, off the Catalan coast, at depths ranging from 70 to 350 meters.

The research project is called “Long-Term Platform for the Observation of Marine Ecosystems (PLOME)” and is comprised of six partners: the University of Girona (UdG), the Universitat Politècnica de Catalunya – BarcelonaTech (UPC), the University of Balearic Islands (UIB), the Polytechnic University of Madrid (UPM), the Institute of Marine Sciences (ICM-CSIC) and the company Iqua Robotics.

The PLOME project, funded by the Spanish Research Agency and Next Generation European funds, is working to develop a non-invasive and modular platform to gather essential data for the scientific community to supervise, monitor, and manage marine ecosystems more efficiently. So far, a set of independent systems has been developed, consisting of fixed stations that remain on the seafloor, underwater vehicles, and surface vehicles. These systems are equipped with batteries and wireless communication systems, and they work together autonomously to collect data.

Currently, data extraction can only be predominantly carried out when a human team conducts an oceanographic campaign. The project aims to advance this information gathering system. Thus, the PLOME platform allows remote monitoring without the need for human intervention once the systems have been deployed on the seafloor, over a period of several weeks, with real-time communications facilitating ecosystem tracking.

During the December campaign, two fixed stations, two underwater vehicles, and a surface buoy were deployed to transmit information, which served to validate the operation of the various technologies developed since the beginning of the project. The systems communicated correctly using acoustic modems to share data and optical communication to share images. The cameras, installed on each system, recorded data from the seafloor and simultaneously processed it using artificial intelligence techniques to detect the presence of individuals such as fish or crustaceans. New technologies for optical and acoustic mapping of the seafloor were also validated, allowing for the reconstruction of terrain or acoustic visualization to reduce the impact of artificial light in habitats where sunlight does not reach.

The test results were successful, and work is already underway on the next validation campaigns of the project. The next one will take place at OBSEA, the UPC’s cabled marine observatory located in Vilanova i la Geltrú. In this case, a fixed station will be installed with the capacity to contain an underwater vehicle that will daily carry out monitoring tasks and return to the station to recharge batteries and transmit information. The final campaign of the project will be carried out in 2025, once again aboard an oceanographic vessel, to validate the final development of the deep-sea monitoring platform.

Figure 1. Members of the oceanographic campaign in front of the Sarmiento de Gamboa ship in the port of Palamós.

Figure 2. UPC fixed stations prepared to be placed on the seabed.

Figure 3. Recovery of the Girona 1000 autonomous underwater vehicle of the UdG.

Figure 4. PLOME project work team at the end of the campaign.

Ref. PLEC2021-007525/AEI/10.13039/501100011033

Categories
Events Sparus II

Use case: SPARUS II AUV for critical underwater infrastructure inspection

99% of the communications occurring in the world today happen through underwater fiber optic networks. There are more than 420 submarine lines in the world, totalling 1.3 million kilometers which allow us to communicate and operate in the way we do as a society. These infrastructures are equally important today as oil and gas pipelines, since the volume of financial transactions, very relevant to the system, run through these underwater cables.

Underwater environments are hazardous and especially difficult to monitor for two main reasons: firstly, the locations themselves may be areas of difficult access either for their depth, the existing currents, or even the movements of the seafloor and, secondly, the technologies that are commonly available in the surface, like GPS or WiFi will not work. So, there is a clear vulnerability for the security of these infrastructures.

On average, there are over a hundred breaks of submarine cables every year, caused in general by the fishing boats that pull the anchors. But, being identified as critical infrastructure, they are also a target for potential sabotage. The first attacks registered date back in 2017. Although they remain unknown to the general public, they are no less worrying and prove the capacity of external powers to separate Europe from the rest of the world.

Keeping this context in mind and in the framework of “Robotic Experimentation and Prototyping using Maritime Uncrewed Systems” (REPMUS) exercise, multiple technologies for automatic underwater cable detection and inspection were tested in a simulated complex scenario. Led by NATO, the event takes place annually in the Lisbon coastal area hosted by the Portuguese Navy.

Figure 1. SPARUS II AUV deployed in the area of interest. ©IQUA robotics

IQUA robotics participated in REPMUS 2023 exercise, invited by the Spanish Navy to prove the capabilities of its vehicle SPARUS II AUV for the described mission. The goal of the mission was to, in a completely autonomous way, locate the cable and inspect it from nearby to be able to identify potential threats to it.

One of the characteristics of the SPARUS II AUV is its possibilities to be configured according to the mission needs, in this case, the vehicle was equipped with an optic camera system developed by IQUA and a commercial forward looking sonar.

Figure 2. SPARUS II AUV configuration for CUI inspection. ©IQUA robotics

The IQUA Robotics strategy for addressing the assigned task consisted of the following steps:

  • Deploying the AUV in proximity to the supposed cable location.
  • Executing a predefined autonomous mission within the area, while employing an automated algorithm to continuously analyze incoming forward-looking sonar data to detect the cable presence.
  • Without human intervention and without requiring resurfacing, the AUV automatically plans a trajectory connecting all potential cable locations observed in the sonar images.
  • The AUV then follows the planned trajectory close to the seafloor, enabling the camera system to capture images of the cable along its route.
  • Returning to the surface with the collected data.

Figure 3. Schematic of the approach taken for capturing the cable data for inspection. ©IQUA robotics

Throughout the mission, real-time monitoring was conducted from the surface through the IQUAview user interface, which visualized data transmitted by the AUV via an acoustic modem. The collected data allowed the creation of acoustic maps and visual reconstructions along the cable.

Figure 4. Visualization from the control station of the obtained optic data off-line. ©IQUA robotics

The image below shows a mosaic of approximately 150m long x 2.5m wide where one suspicious element is clearly identified (60x20cm) and can be seen with high resolution for its interpretation. The capability of finding such objects closeby the cables without human intervention can be key to the future of the security of critical underwater infrastructures.

Figure 5. Mosaic created of the inspected area available in high resolution for its interpretation. ©IQUA robotics

Sources:

Submarine Cables: Risks and Security Threats (2022)

NATO exercises with new maritime unmanned systems in Portugal (2023)

Categories
Products Sparus II

SPARUS II AUV Alice: a life full of changes

Back in 2016, when IQUA robotics was created, University of Haifa SubSEA Engineering lab and the VISEAON Marine Imaging lab decided to acquire a Sparus II AUV. By then, the research interest and goal of the team was to work on the development of underwater marine technologies.

Part of the team, led by Morel Groper, wanted to work on dynamics, maneuvering and propulsion of underwater vehicles. And, another part of the team, led by Tali Treibitz, were willing to do research on underwater imaging and underwater computer vision. To make this happen an underwater marine platform was required. As developing a platform from scratch could take a long time, they chose to purchase a platform off the shelf tailored to their requirements.

Image 1. SPARUS II AUV Alice first sea trials in Girona (Spain). ©IQUA robotics

“Sparus II was selected for several reasons: first, in order to develop technology and integrate it, a fully open-source vehicle platform, both hardware and software were necessary. Based on my previous experience, commercial platforms do not provide open source and it is nearly impossible to integrate new, self-developed technologies into them. Secondly, by purchasing from a company that was created from an academic lab, we assumed our requirements and needs would be better understood. And, finally, our goal was to find a two-man portable light platform that would let us conduct experiments more easily without needing a large, expensive surface support platform” says Mr. Groper when asked about the decision of purchasing Sparus II platform.

It is important to realize, however, that working with new technologies requires adaptation, as the University of Haifa team was not only willing to operate Sparus II but also to adapt it to their research needs.  “This adaptation was easier with IQUA support and specifically, the personal relationships that both engineering teams, from Haifa and IQUA established. By establishing direct dialogue routes, we were able to use the vehicle for the projects we desired.”

Image 2. SPARUS II AUV Alice with the modifications performed by the Haifa University team. © Matan Yuval – Haifa University

ALICE, the name that is used locally to name University of Haifa’s Sparus II, is a key member of the research lab, having greatly benefited the team’s capabilities in underwater marine technologies. “ALICE is a platform suitable for research and development, specifically for self-developed technology. It possesses significant engineering abilities. We would only wish that she was slightly smaller for easier operation and lower costs.” The reconfigurable capabilities of IQUA’s vehicles are highly valued by the customers of the scientific community since they can perform their research building upon an already reliable technology.

But, which are the main changes that the Haifa team has performed on Alice? “A significant number of technologies were developed and embedded into ALICE. For high resolution 3D seabed surveys a dedicated imaging payload was developed. As demanded for visual surveys in confined spaces, the propulsion system was enhanced by the addition of two thrusters to allow sway and uncoupled yaw motions. As part of the EU project DeeperSense a novel payload combining a forward looking camera and a forward looking sonar is currently developed. In the future, we plan to keep using ALICE to develop additional technologies, test concepts and promote our research.”

This has been the use case of ALICE, the eldest Sparus II AUV manufactured by IQUA, a very special AUV that started its journey back in 2017 and that has already boosted University of Haifa’s underwater marine technologies development.

Image 3. Forward looking payload developed for SPARUS II AUV Alice integrating a camera system and a Teledyne BlueView Forward Looking Sonar. © Matan Yuval – Haifa University

Categories
Uncategorized

Testing our newly developed optoacoustic payload in Atlantis testbed (Portugal)

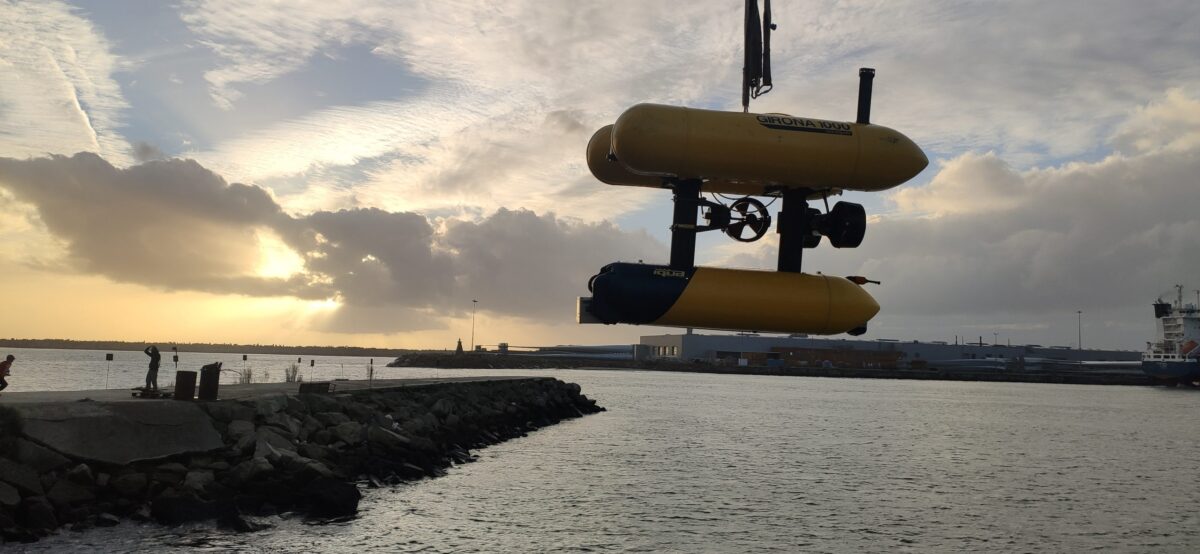

Girona100_ATLANTIS_IQUA

The world’s first offshore wind farm was installed at Vindeby, off the southern coast of Denmark, in 1991. At the time, few believed that this could be more than a demonstration project. Thirty years later, offshore wind power is a large-scale, mature technology that provides power to millions of people around the world. New facilities have large capacity factors and costs have been steadily declining over the past ten years.

WindFloat Atlantic – Image: EDP renewables

The deployment of offshore wind energy is at the core of delivering the European Green Deal. The installed offshore wind capacity in the EU was 14.6 GW in 2021 and is set to increase by at least 25 times by 2030, using the vast potential of the 5 EU sea basins.

The future of renewable energies is, thereby, at sea and all the current focus are in the development of technologies that can be operative in the short run, diminishing the dependence on common energy sources up to the date and with the smallest impact in the environment.

ATLANTIS H2020 funded project aims to establish a pioneer pilot infrastructure capable of demonstrating key enabling robotic technologies for inspection and maintenance of offshore wind farms.

Atlantis H2020 project overview – Image: ATLANTIS H2020 project

Last week, a team of IQUA robotics was in Viana do Castelo (Portugal) testing the technologies developed in the framework of the project in the pilot structure build on that purpose. Most of those technologies will be tested in real environment in the open sea on 2023. In this occasion, IQUA developed a payload used in the testing platform of the University of Girona, Girona 1000 AUV.

Girona 1000 AUV developed by University of Girona with IQUA developed payload – © IQUA robotics

The focus of the tests was the autonomous close-range navigation and inspection of the floating structure. The mapping of the structure was performed using the newly developed optoacoustic payload. During the experiments conducted on the site, the vehicle was able to navigate autonomously, and at close range of the structure, while simultaneously building and maintaining an occupancy map, and using it to feed the path-planning algorithm to avoid unexpected obstacles such as small buoys which were present on the site.

Girona 1000 AUV navigating autonomously in previous trials in Girona coastal area – © IQUA robotics

Sources: European Commission Atlantis H2020 website

Picture: ©IQUA ROBOTICS

Categories
Projects

PLOME, a research project to monitor marine ecosystems

SPARUS II AUV
SPARUSII AUV

Understanding the marine ecosystem is key to monitoring, evaluating, and managing its functioning. To do this, the scientific community needs data. The PLOME project will obtain it with an underwater platform that will monitor the ecosystems of the seabed for extended periods.

Girona, 7th of July 2022. A scientific team led by the University of Girona (UdG) will develop an underwater platform to intelligently monitor marine ecosystems in real time. The project is called “Platform for Long-lasting Observation of Marine Ecosystems” (PLOME) and is carried out jointly with the Universitat Politècnica de Catalunya · BarcelonaTech (UPC), the Universitat de les Illes Balears (UIB), the Universitat Politècnica de Madrid (UPM), the Institut de Ciències del Mar (ICM-CSIC) and the company Iqua Robotics SL.

The project has a budget of 1.5 million euros from funds from the Spanish Research Agency and the European funds Next Generation. Over the course of three years, PLOME will design a non-invasive, modular platform to collect essential data so that the scientific community can better monitor, supervise and manage marine ecosystems.

Specifically, the project proposes to develop a set of independent systems consisting of fixed stations that remain on the seabed, submarine vehicles and surface vehicles that work together and autonomously to collect data. All systems have batteries and communication systems. Underwater vehicles can be parked to charge batteries and surface vehicles can work by extracting energy from the environment.

The set of systems constitutes a platform that can monitor an area for several weeks, and up to a month, without the need for human intervention. Once collected, the systems are maintained, data is extracted, batteries are charged, and the platform can be deployed again so that monitoring can continue in another area.

The project aims to advance the current methodology in which, for the most part, data is only extracted while there is a human team conducting an oceanographic campaign. The PLOME platform allows monitoring for a long period, with real-time communications that facilitate the monitoring of the ecosystem.

Since the systems are working for many days, artificial intelligence is used to detect species and adapt and optimize seabed monitoring according to the detections. Researchers will also receive a summary of the detections in real time, so they can understand what is happening and be able to change the parameters they want to make better use of the rest of the days when the platform will still be collecting information.

During the three years of the project, three experiments will be carried out in different places on the Catalan coast. The first will take place in 2023 on the coast of Sant Feliu de Guíxols. It will be the first time that the technologies developed will work together to obtain data from the seabed. During 2024, two final experiments of the project will be carried out. The first will consist of a deep validation, between 300 and 500 meters, in a protected area of real fishing near the city of Barcelona, by means of an oceanographic boat. In this experiment the monitoring systems will be validated in real conditions for several days, supervising and operating the systems from the ship.

The second experiment will be carried out on the coast of Vilanova i la Geltrú, and will consist of validating all the systems at shallow depth over a week without interruption. The platform will be connected to the OBSEA marine observatory, and this will allow real-time monitoring of all systems to verify that they are working properly.

“With PLOME we want to consolidate the use of autonomous submarine vehicles as a tool for observing the seabed that does not require a whole human team and an infrastructure dedicated to the time it is used,” explains the researcher of the research group in Computer Vision and Robotics (VICOROB) at the UdG and project coordinator, Marc Carreras. According to him, “autonomous vehicles allow work to be done for one or more days, analyzing and making decisions so that the data acquired is valuable“.

“It is one of the technologies needed to properly manage marine ecosystems as this autonomy allows the operation of vehicles to be scalable,” adds the VICOROB researcher. This group has extensive experience in national and international research projects related to autonomous underwater vehicles (AUVs), including the development of the AUVs Girona 500/1000 and Sparus II, used by different international research groups. In addition to leading the project, VICOROB will be responsible for adapting the autonomous underwater vehicles for experimental validation.

For its part, the ICM is the partner responsible for calculating ecological indicators as a synthetic metric for the health and recovery of marine ecosystems. “From the information obtained through the automatic processing of images from robotic platforms, we will proceed to calculate the abundance of species and global biodiversity,” says ICM researcher Jacopo Aguzzi.

The Centre de Desenvolupament de Sistemes d’Adquisició Remota i Tractament de la Informació (SARTI-UPC) will contribute to the design of fixed seabed observation stations. Thanks to the experience acquired after more than 10 years since the deployment of the observatory marí OBSEA, the SARTI group deals with the design of landers, stations that will host instrumentation such as cameras and sensors, devices for communication with the surface and the recovery elements of the platforms. “The landers allow the measurement of different marine parameters at a fixed point and will link the communications of the entire platform with surface“, specifies the UPC researcher, Joaquín del Río.

The most relevant contribution of the UIB in this project is the generation and implementation of artificial intelligence algorithms for the analysis of images obtained by the cameras on board the platforms, both in autonomous vehicles and in the fixed stations. The aim is the detection, identification, cutting and quantification of different marine species.

UPM will focus on the management of acoustic submarine communications and satellite and / or GSM communications. For this reason, a Middleware will be developed to facilitate the use of communication devices between all the actors involved in the project (vehicles, stations, ships, control station, etc.). The Middleware it allows to treat all the devices of communications of the same way, contributing a layer of communications of high level that simplifies the use of the same, without being necessary to have a deep knowledge by the user. The works will be developed by the Research Group in Applied Instrumentation and Acoustics (I2A2) of the UPM.

Finally, the company located in Girona IQUA Robotics will develop mapping algorithms based on data acquired with lasers, camcorders and acoustic cameras. Created in 2016, IQUA Robotics is dedicated to the design, development and marketing of autonomous underwater vehicles and other related technologies. It is the only private company in the consortium.

Categories
SoundTiles

SoundTiles new release supports FLS data from major brands

Last April we launched the new release of SoundTiles software for processing FLS data. Besides the already supported brands:

• Sound Metrics
• Norbit

We now support:

• Teledyne Blueview
• Teledyne Reson
• Blueprint Subsea
• Kongsberg Maritime

SoundTiles is a stand-alone software solution for automatic generation of underwater acoustic mosaics from forward-looking sonar images that was launched by IQUA robotics on July 2021.

The software allows to process a set of sonar images, find the correct alignment between them and blend them in one single informative mosaic. The generated mosaic provides an overview of the surveyed area and eases the interpretation of the imaged scene, allowing the identification of spatial relationships and offering a map of increased resolution and signal-to-noise ratio with respect to the individual sonar images.

To be informed about the last developments on SoundTiles, you can now register to receive our newsletter.

Categories
Girona 500 Products

The CSIC’s Marine Technology Unit incorporates a Girona 500 AUV

The CSIC’s Marine Technology Unit, responsible for the management of this organization’s oceanographic research vessels, is preparing a new autonomous underwater vehicle for future campaigns. It is the Girona 500 NEMO, an autonomous underwater vehicle (AUV) that can go up to 500 meters deep, designed and built by IQUA Robotics. NEMO was acquired at the end of last year and was tested for the first time in the waters of Sant Feliu de Guíxols (Girona).

Currently, the technicians of the Marine Technology Unit are preparing NEMO for carrying CTD sensors (which measure conductivity, temperature and depth), photographic cameras, current profilers and bathymetric probes. “Our vehicle has an open architecture, so it can be modified in a reasonably simple way to adapt it to user requirements and therefore explore new ways of working,” explains Pablo Rodríguez, from the UTM.

Thus, it will allow mapping underwater habitats, obtaining topographies of the seabed, of interest in the field of geology or underwater archaeology, exploring marine habitats or monitoring natural reserves. In the near future, the vehicle could also be deployed in Antarctic campaigns. NEMO has sparked interest among researchers, who are already including its use in future projects.

The Marine Technology Unit (UTM), based in Barcelona and attached to the Mediterranean Center for Marine and Environmental Research (CMIMA) of the CSIC, has the main objective of providing support to the national policy of R&&I in science and marine and polar technology. The UTM is in charge of the integral management of the Sarmiento de Gamboa Oceanographic Vessel, the logistics and technological management of the Hespérides Oceanographic Research Vessel and the integral management of the vessels García del Cid and Mytilus, as well as the BAE Spanish Antarctic Base Juan Carlos I.

Source: UTM-CSIC

Full article (Spanish)

Full article (Catalan)
